Model 360 Pancake Probe




Manufacturer: Arrow-Tech, Inc.
Product ID : 360

Overview

The Model 360 Pancake Probe is used in general purpose contamination monitoring. This probe provides sensitivity to alpha, beta and gamma radiation.

Description

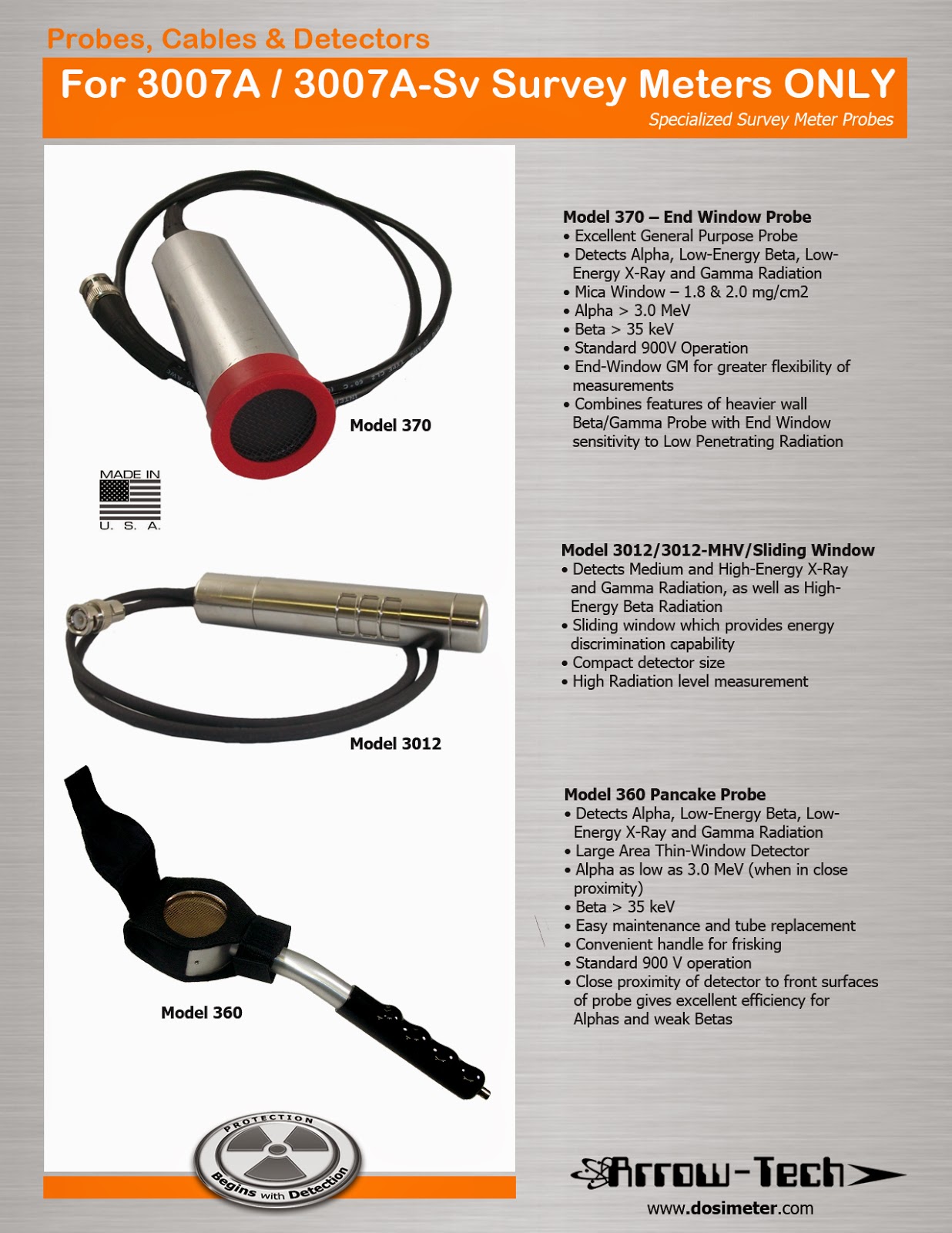

Model 360 Pancake Probe
The Model 360 Pancake Probe has a large area mica window that has a thickness of 1.8 to 2.0 mg/cm2. This allows detection of alpha radiation as low as 3.0 MeV when in close proximity to the window. Beta radiation in excess of 35 keV and X-ray or gamma radiation greater than 6 keV will penetrate the window. The detector is provided with a BNC connector. It can be used with most count rate and survey meters which accept Geiger Mueller (GM) detectors operating at 900V DC.
Features:
  • Detects alpha, low-energy beta, low-energy X-ray and gamma radiation
  • Large Area Thin-Window Detector
  • Easy maintenance and tube replacement
  • Convenient handle for frisking
  • Standard 900 V operation
  • Close proximity of detector to front surfaces of probe gives excellent efficiency for Alphas and weak Betas
