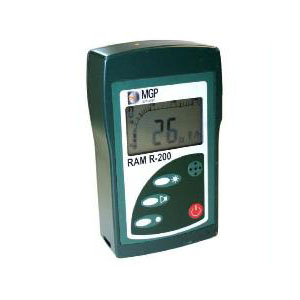

RAM-R 200 SURVEYMETER

RAM-R-200
GM Tube-Based Portable Smart Radiation Meter


Product Information

HARGA

NEGO
= = = = = = = = = = = = = = = = = = = = = =
(UPDATE 4 FEBRUARI 2013)
= = = = = = = = = = = = = = = = = = = = = =

> Kondisi barang indent 4 minggu.
> Langsung kalibrasi.
> Harga sudah termasuk kalibrasi pertama kali dan pengiriman ke tempat tujuan.
> Jika menghendaki transaksi an. Perusahaan, maka harga masih belum termasuk ppn 10%. (Jika ingin transaksi resmi bukan pribadi).


The RAM-R 200 can be used as a portable or stand-alone radiation measurement monitor. An audible indication is activated either by frequency fluctuations in accordance with the field strength or chip for each measured pulse.
The RAM-R-200 utilizes a combination display consisting of a smooth digital readout for minimum fluctuations and a twodecade analog bar graph for fast viewing response.

Features...
The RAM-R-200 is designed for measuring a wide range of alpha,beta and gamma radiation fields (with external smart detectors). The RAM-R-200 features 2 internal energy compensdated GM tubes, with a measurment range of 10uR/hr to 100 R/hr (0.01mSv/hr to 1 Sv/hr).
• includes embedded microprocessors, data logging and data communication for calibration
• automatic self-test of meter and external probes
• automatic detector identification with each change of the
detector
• built-in RS232 communication with optional telemetry
• calibration software
• backlight display

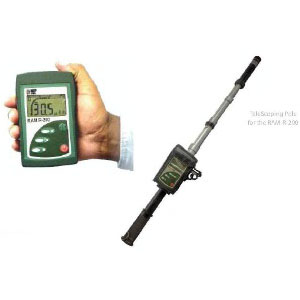

• optional extended pole for hard to range places
• data logging: 1000 data records
Technical Specifications:
Radiological Characteristics
• detector: energy compensated GM-tube (ZP-1201 and ZP-1313)
• accuracy: +/- 10% of reading, within measuring range
• energy range: 60 to 2000 keV
• sensitivity: 17cps/mR/h (ZP1201), 1.4 cps/mR/h (ZP1313)
• detector life time: 20R/h field for six months
• contamination: cpm or counts (e.g. cpm, Kcpm, Mcpm)

Electrical Characteristics
• power supply – 9 Volts (supplied by a 9 Volt battery located in the meter case)
• battery life: approximately 100 hours of continuous use
Mechanical Characteristics
• meter dimensions (w x h x l): 80 x 35 x 134 mm (3.2 x 1.4 x 5.3 in)
• weight (including.cell): 460gr (1 lb)
• casing: seawater resistant aluminum alloy, shock resistant
• display:
• DigiLog (3 digits and 2 decades of analog bar graph)
• Four push-buttons: On/off, light, speaker, mode
Environmental Characteristics
• temperature
• operation -30° to 60°C (-22 to 140° F )
• storage -30° to 70°C (-22 to 158° F )
• relative humidity: 10 to 95% RH (non-condensing)

================

Jika Menghendaki Transaksi An. Perusahaan Maka Harga Masih Belum Termasuk PPn 10% Jika Ingin Transaksi Resmi Bukan Pribadi.
